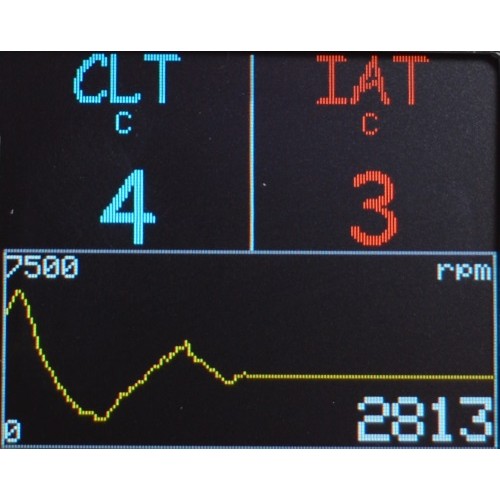

This gauge is compatible with all the Megasquirt based ECU's except the Megasquirt 1. The billet anodized aluminum enclosure and the real carbon face plate give an incredible look. The color OLED display allows to display more information than a standard gauge and the colors are configurable. You can replace an entire dash full of gauges with this single gauge. Actually there are 7 different screens and others will come. 24x multicolor LED gives a quick way to see what's happening. The screen brightness and LEDs adjust itself automatically with the luminosity sensor.
For PiMP | PiMPx | PiMPxs | PiMPxshift | Microsquirt | Megasquirt | MS2 | MS3
One of the biggest features is the alarm module which is very powerful and flexible. It allows to monitor each input and notify when there is something abnormal.
There are two buttons on the gauge to change the displayed screen and change basic settings. Advanced configuration of the alarms are made through a webpage with a built-in Wi-Fi connection to a smart phone, tablet or laptop.
Check out this video showing us cycling through some of the features:
Available data to display on the gauge with MS2 based products (PiMP, Microsquirt):
-MAP (Manifold Air Pressure)
-CLT (Coolant temperature)
-IAT or MAT (Intake Air temperature)
-AFR1 and 2
-Generic Sensor 1 and 2
-VSS (Vehicle speed)
For the MS3 based products (PiMPx/PiMPxs/PiMPxshift), you can display all the above plus:
-MAF (Mass air flow)
-Cam IN and EX positions
-ECU error code
-Speed sensors of each wheel
-And much, much more!
The gauge can also be connected to up to 3 sensors with the 3x 0-5v analog inputs and can be used as an expansion board. This means that if there is a sensor connected to the gauge, the ECU can read it over CANBus and display it in TunerStudio and datalog the value.
-Abnormal temperature (oil, coolant, EGT and more).
-Abnormal pressure (oil, boost, radiator and more).
-Air fuel mixture too lean or rich based on specified conditions.
-Full color 1,7" screen with 160x128 resolution
-24 full-color LEDs
-3x protected 0-5v analog inputs
-Display battery voltage
-1x Digital input
-1x Digital output
-Over 16 configurable alarms
-Configurable with any Wi-Fi equipped devices like smart phones, tablets or laptops. No app needed!
-Auto dimming feature
-Interchangeable carbon faceplate
Optional Compatible sensors (maximum 3 per gauge):
-Any air fuel controller including our Spartan 2 Wideband Controller.
-Temperature sensors for oil, air, coolant and more.
-Pressure sensor for oil, fuel, coolant and more
-MAP sensor up to 44 PSI of boost!
-Exhaust gas temperature (EGT) 1250 Celsius (2200F)
-Flex fuel (coming soon)
Compatible with any standard 52mm (2 1/16") gauge pod.
Overall dimension is 69mm Diameter and 20mm thick!
Instructions & Documentation:
-Quick Start Guide: Click Here
-User Manual: Click Here
To connect to PiMPx/PiMPxs/PiMPxshift, requires expansion port connector and two wires with pins (CAN H & CAN L) which is available in the gauge options drop down menu above.
Gauge - Perfect Tuning All-In-One Configurable OLED Display
- Brand: Perfect Tuning
- Product Code: OLED Gauge
- Availability: 10
