For Factory 4 Cylinder Batch Fire Applications that want to convert to Sequential EFI (Injector Wiring Mods & Ignition System Changes Required for Sequential Conversion). Add 21st Century technology to your mid 80's to mid 90's Ford!

This kit combines two of our other listings for people who want to get it all in one big kit. For complete details about the ECU, CAS, Coil on Plug kits, and IGN-1A Coils, you can view their individual listings below:

PiMPxs ECU Details Here
CAS (Cam Angle Sensor) Details Here
Coil on Plug Details Here
IGN-1A Coil Details Here

Instructions & Documentation:
--CAS User Manual: CLICK HERE
--Harness User Manual: CLICK HERE

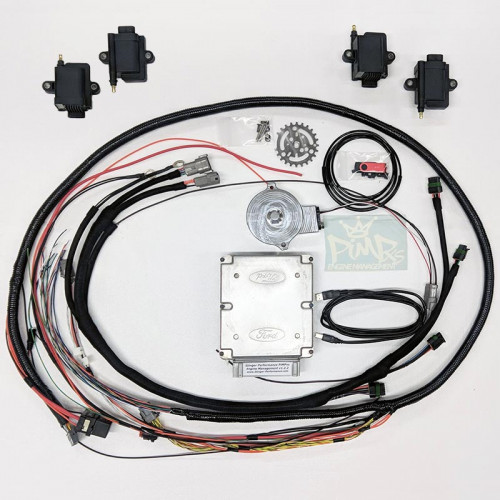

Includes:
-PiMPxs ECU
-1GB USB Flash Drive (containing all required software, startup instructions, base tune, etc)
-Licensed TunerStudioMS Tuning Software When Software Option is Selected at Checkout ($69.95 value, More Info)
-MegaLogViewer Datalogging Software (More Info)
-USB Tuning Cable - 5' Length
-Silicone Vacuum Hose For Internal MAP Sensor - 6' Length
-PiMPxs Engine Management Sticker
-PiMPxs Quick Start Guide (Digital/Printable)
-MS3 Advanced Feature Guide (Digital/Printable)
-Online Technical Support via Forum (Support is provided by paid professionals, not other PiMPxs users)
-Online Tuning Guides via Forum
-Online Tutorials via Forum
-CAS (Cam Angle Sensor)
-Coil Near Plug Expansion Harness
-IGN-1A Coil Harness (Connects Direct to Coils)
-IGN-1A Coils x4

Requires:
-Windows 95 or Newer Laptop w/Standard USB Port (Also works with Mac OS X 10.7+ or Linux)
-Wideband o2 Sensor Controller with Analog Output (Available as Add-On, see AEM & Spartan Options HERE)
-Factory Ford Wiring Harness for your Ford vehicle (or purchase new custom PiMPxs Harness from Related Products below)
-ACT Sensor for vehicles not factory equipped (ACT Sensor & Wiring Pigtail available in Checkout Options)
-VSS Sensor for vehicles not factory equipped (optional, required if you want to use speed-based features)
-IGN-1A Coil Brackets/Mounts
-Plug Wires

Tested Direct Plug & Play (After Sequential EFI Injector Mods) Into:
-87-93 2.3 Mustang
-83-86 2.3 Turbo Mustang SVO, Turbo GT
-83-88 2.3 Turbo Thunderbird Turbo Coupe
-85-89 2.3 Turbo Merkur XR4Ti
-87-94 2.3 Turbo Swapped Ranger (TFI Ignition)
-Other vehicles using engine & harness from batch fire applications listed above
-All applications above can run sequential EFI with this ECU if wired for sequential injection and running this kit

Also Capable of Running:
-Virtually any other EEC-IV EFI (OBD-1, 1983-1995) Ford vehicles without computer controlled transmission

If a PiMPxs is purchased, no harness modifications are required for factory application with sequential EFI provided your application uses the popular “LA3” pinout for 87-88 Thunderbird Turbo Coupe, otherwise for any other Ford ECU, no pin changes are required to run the engine but may be required for fan control, boost control, launch control, and other optional features. Our PM-66 sequential 4 cyl harness found in the related products below eliminates any repinning and deletes unused connectors while labeling all wires for their new purpose with the PiMPxs.

All of the software and documentation needed to get you up and running comes on a 1GB USB Flash Drive. That way you don't need wireless internet to access these items. A 20+ page startup guide covers every detail to get you up and running including PiMPxs installation, software setup, and hardware configuration. The PiMPxs section of our Tech Forum is available to cover any questions you may have that aren't covered in the startup guide.

Note that all PiMPxs ECU's are built exactly the same from a hardware standpoint. The end user can configure the PiMPxs to work with the vehicles/engines listed above without needing to send the unit back for upgrading or modification. This means you can use it in a 2.3 powered car. Then if you purchase another 83-95 Ford down the road, you can re-configure it to work in the new car without issue. This is a feature that is exclusive to the PiMPxs and not available elsewhere.

Also note that the PiMPxs comes with all features built-in. No need to pay for each feature or send it back to upgrade to additional features (unless they are advanced features that are not listed above). Some features do require some external hardware (nitrous solenoids, boost solenoid, flex fuel sensor, water injection pump, switches or relays, solid state relays, etc.). Also note that you can get $60 worth of software for only $39.99 with this ECU which you will not find anywhere else.

Add Internal Real-Time Baro:
It is rare that our customers use real-time barometric adjustment so we've made it an optional add-on due to the cost of the sensor itself (no reason to have you pay for something you won't use). It's rare to use because it's only really beneficial when you frequently drive over large mountain ranges with over 6000ft of elevation change. It could be considered reasonable to use it if you drive through elevation changes above 2000ft but the benefit is minimal compared to the benefit at higher elevation changes.
Note this has nothing to do with the elevation you live at, it's only related to elevation change while driving (so someone living in Denver that doesn't drive this vehicle over the mountains wouldn't need it any more than someone living at sea level).

-Not for on-road use in vehicles required to be emissions compliant.

Write a review

Please login or register to review

PiMPxs Engine Management + CAS + COP Kit | Sequential EFI | 4 Cyl

  • $1,829.99
  • $1,749.99
