Old or cheap ignition system components and improper plug gap are the most common causes of misfires and poor running conditions for the 2.3 turbo engine. We've seen a ton of issues with cheaper brands that don't exist with genuine Motorcraft ignition components. Fix or prevent these problems by investing in this kit utilizing the OEM parts designed specifically for these engines, plus the addition of a high quality timing belt and tensioner to ensure reliable performance. If you're installing all of these parts, it would be a great time to consider installing our adjustable cam gear as well.
Dirty fuel injectors or fuel filter will cause your engine to run lean, increasing the probability of damaging a headgasket or melting a piston while also hurting power production and overall drivability. Old throttle position sensors have dead spots that hinder the ECU's ability to understand what's truly happening with the throttle, causing rough and inconsistent running conditions. The late style TPS is what plugs into all of our 2.3 engine harnesses. Late style TPS will work on early engines if wiring pigtail is added to old harness. Fuel pressure regulator issues will cause the engine to run rich, hurting MPG while also washing oil off of the cylinder walls, causing severe engine damage.
Cap + Rotor:
Motorcraft Distributor Caps feature high-density phenolic or polyester plastic construction with high resistance to keep high voltage from making contact and causing misfire. Turbo applications put extra stress on the ignition system so trying to save a few dollars on some no-name cap and rotor is a recipe for misfires.
Two rotor designs were used in these applications. The early umbrella style was used in most applications until 85 or 86. The standard rotor was used starting in 85 or 86 depending on the application.
Check the fitment guides below for general information. Due to the early and late style distributors being interchangeable, it's best to pull the cap and verify which style your application uses before ordering.

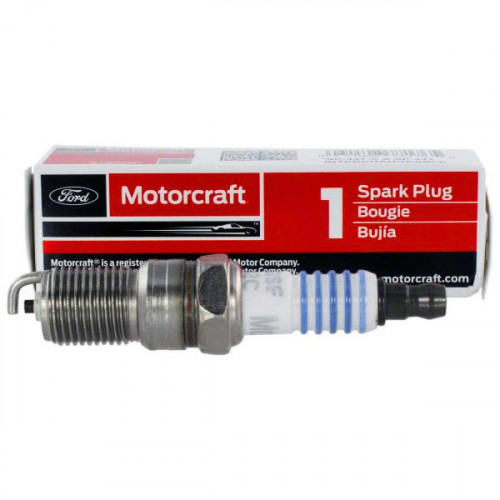

These Motorcraft spark plugs are the only plugs we suggest for 2.3 turbo applications running stock TFI ignition. We've seen people have issues with other brands, as well as non-copper plugs (platinum, iridium, etc.) but these tried and true copper plugs just flat out work. No reason to spend big money on the "fancy" plugs when they will work no better (or in many cases will be much worse) than what Ford spec'd as the OEM plug for these engines.
These come factory gapped to .034". We suggest .028" gap for 15-22psi and .024" gap for 23+psi (race gas only). If you want us to gap them for you before shipment, the option is available below. Fits many other applications, see fitment guide below.
These Motorcraft wires are the only plug wires we suggest for 2.3 turbo applications running stock TFI ignition. We've seen people have issues with other brands often enough that it's just not worth risking it to save a few dollars. These tried and true OEM Ford plug wires just flat out work. No reason to spend big money on the "fancy" plug wires when they will work no better (or in many cases will be much worse) than what Ford spec'd as the OEM plug for these engines.
Timing Belt + Tensioner:
Kit includes both the timing belt and belt tensioner with optional timing pointer. Available with round or square tooth belt.
These Timing Belt Tensioners are designed and built to meet or exceed OE specifications.
Replacement Timing Belt for Ford 2.3, 2.5, 2.3 Turbo engines.
Verify which belt type your vehicle uses (square or round) to ensure proper fitment.
Timing Pointer does not fit dual plug engines (89+ Ranger, 91+ Mustang).
- Distributor Cap
- Rotor (Standard or Umbrella)
- Spark Plug Wire Set
- Spark Plugs x4 (Pre-Gapped Optional)
- Timing Belt (Round or Square Tooth)
- Timing Belt Tensioner
- Fuel Filter
- Kirban Adjustable Fuel Pressure Regulator (Optional)
- 35 lb/hr Injectors (Optional)
- Timing Pointer (Optional)
- Throttle Position Sensor (Optional)
- Oil Cap (Optional)
Fitment Guide (Cap w/Standard Rotor):
FORD MUSTANG 1986-1990
FORD MUSTANG SVO 1985-1986
FORD RANGER 1986-1988
FORD THUNDERBIRD 1985-1988
MERCURY CAPRI 1986
MERCURY COUGAR 1985-1986
MERKUR XR4TI 1985-1989
Fitment Guide (Cap w/Umbrella Rotor):
FORD MUSTANG 1983-1985
FORD MUSTANG SVO 1984-1985
FORD RANGER 1983-1985
FORD THUNDERBIRD 1983-1985
MERCURY CAPRI 1983-1986
Fitment Guide - Round Belt:
FORD MUSTANG 1992-1993
FORD RANGER 1992-1994
MAZDA B2300 1994
Fitment Guide - Square Belt:
FORD FAIRMONT 1978-1983
FORD GRANADA 1981-1982
FORD LTD 1983-1986
FORD MUSTANG 1979-1992
FORD MUSTANG II 1974-1978
FORD PINTO 1974-1980
FORD RANGER 1983-1992
FORD THUNDERBIRD 1983-1988
MERCURY CAPRI 1976-1986
MERCURY ZEPHYR 1978-1983
MERKUR XR4TI 1985-1989
Fitment Guide - TPS (See Individual Listings For Exact Fitment):
VARIOUS FORD/LINCOLN/MERKUR/MERCURY 1983-1985
VARIOUS FORD/LINCOLN/MERKUR/MERCURY 1985.5-1989
Premium Tune-Up Kit | Motorcraft | Ford | 2.3 | Turbo
- Brand: Stinger Performance Engineering
- Product Code: 2.3PremiumTuneUp
- Availability: 10
