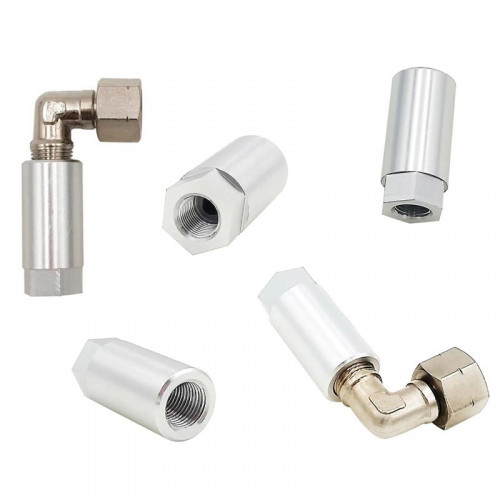

Aluminum Fuel Service Port Adapter allows for a plumbing connection directly to the vehicle’s fuel system service port Schrader valve. Ideal for connecting remote fuel pressure gauges or an easy access fuel connection without modifying the fuel lines. Does not require removal of the service port's internal Schrader valve.

Adapter fittings include adjustable core to ensure correct depth to open Schrader valve. If there isn’t a reading on the fuel pressure gauge, the adapter is not depressing the Schrader valve and needs to be adjusted. Remove the adapter and sensor from the adapter. Using a 1/16” Allen key, rotate clockwise to adjust the pin closer to the Schrader valve. Turn counterclockwise to adjust the pin further away. Reinstall once the correct depth is set. Be sure to use thread paste or Teflon tape on threads for a leak-free installation.

Features:

  • Does not require Schrader valve core removal
  • Adapter Fittings Feature Adjustable Core
  • 1/8 NPT Female Thread for Gauge or Pressure Sender

Includes:

  • Schrader Valve Adapter Fitting (Straight or 90 Degree)

Common applications:

  • 86-95 Mustangs (All Engines)
  • 96-98 Mustang GT 4.6
  • 5.0/5.8 Ford Trucks and Cars,
  • 83-88 Ford 2.3 Turbo Engines
  • 87-99 Ford 2.3 Non-Turbo Engines
  • Most 80's and 90's Fords


Write a review

Please login or register to review
