Stinger Performance was featured in the May 2006 "Turbo Revolution" issue of MM&FF Magazine.


Stinger Performance
was also featured in the Sept. 2007 issue of MM&FF Magazine.


Check Out the May 2006 & September 2007
issues of Muscle Mustangs & Fast Fords.

Project Bolt-On
Featuring Many of the "Bolt On" Parts available from
Stinger Performance

































































































































































































































































































































































































































































































Internal Engine, Suspension, & Drivetrain Components:

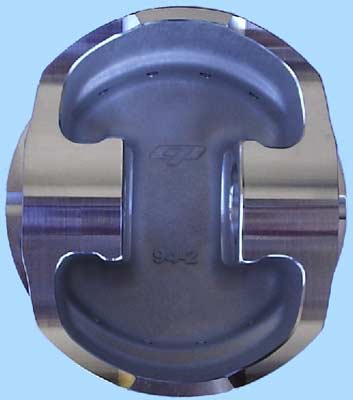

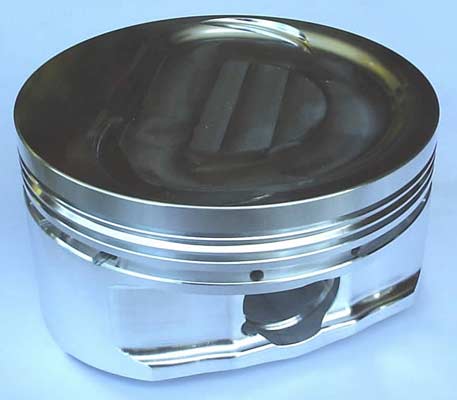

Custom CP Forged Pistons (Iron Head/Esslinger Head/Volvo Head)
CP makes the finest 2.3 Turbo pistons on the market, without question. There are other companies that offer pistons for these engines at a lower price but the bottom line is, you don't know what you are missing with those pistons until you see and use a set of CP's. They use the same alloy, machines, and finish work on all of their pistons, regardless of application. This means they are held to the same quality standards from stock replacements to the full on race engines you see in NASCAR, IRL, and endurance racing.

Rings: Ring choice is critical if you want to have long engine life. The excellent factory rings have been discontinued for some time now and there is no suitable exact replacement ring available in the aftermarket. Most, if not all "OE replacement" rings are made of some type of cast ring with a sprayed-on or filled "moly" ring facing. The original turbo 2.3 rings were a ductile iron ring set with a plasma moly facing that would often times last 200,000 miles or more...quite a feat in a heavy T-Bird with a small displacement turbocharged motor.

We've been able to find rings that are made from the same material as the original rings and are then gas nitrited for increased longevity. The "catch" if you want to call it that is that they won't work in standard turbo pistons, so in conjunction with CP Pistons, We've come up with a complete piston and ring package that has the excellent rings and high-quality CP pistons.

Sizing: The standard order piston is made for a 3.800 (.020" over) 3.810" (.030" over) finish bore, stock "D" shaped dish, stock deck height, and stock pin size in order to be used in 2.3 engines retaining the stock stroke. Pistons with specs other than this spec are not stocked and will have a ~4 week delay before shipment.

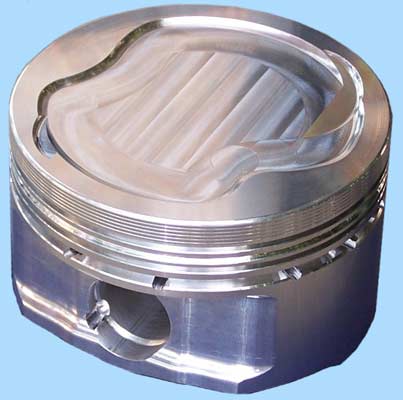

Custom piston specs not listed are available with different overbore sizes reduced pin height for strokers, custom dish shapes, or different compression heights for different rod/crank combinations. It generally takes 4-6 weeks lead time for a custom set. Custom pistons are special order and require email transactions to get all of the specs right before completing the order.

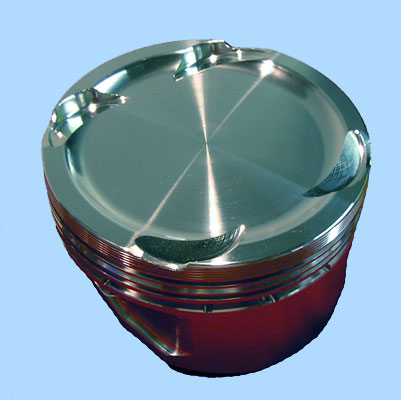

Volvo Head Pistons: We now have a piston design available for those of you running the Volvo 16v head. The design accounts for the bore centerline misalignment and utilizes a valve relief large enough to clear the valve in the misaligned bores as well as the aligned bores. It generally takes 4-6 weeks lead time for a custom Volvo set. Custom pistons are special order and require email transactions to get all of the specs right before completing the order.

If you are serious about making power with these engines and want to build it right the first time, this is the only way to go.

Features included at no additional cost:
Balanced to +- 1 gram Radiused Valve Reliefs
Pin Fitting Fully CNC Machined
Wrist Pins Pick Lock Grooves
Accumulator Grooves-
V-shaped groove machined into second ring land to collect excess gases during combustion & alleviate ring flutter, maximizing ring seal and increasing vacuum
Dual Forced Pin Oilers-
in conjunction with the dual fed reservoir add twice the amount of oil from the cylinder wall to the wrist pin

IMPORTANT: These pistons run tighter clearances than most forged pistons and are designed for a specific finish hone diameter, not a generic "forged piston clearance". The quality control is so tight on these pistons that we actually suggest having the block machined without ever giving the pistons to the machine shop. This eliminates the possibility of the "machine" shop trying to change the clearance specs to what "they" think you should run. I've seen it happen way to many times with unsatisfactory results. What would you rather trust, the piston manufacturer's specs or what a machine shop thinks would be best generic spec in all applications? All they need to do is machine a round cylinder with the listed finish bore, nothing else.

Email Required: Because these are custom pistons, we can't always ensure we have all sizes and designs in stock. If they are not in stock, we will contact you with the anticipated wait time to have the pistons manufactured. Please include your email address with the order so we are able to contact you before processing your order.

Bore, Hone, and Gas Nitrited Ring Gap Information: Click Here

3.800 Bore, D Shaped Dish, Stock Deck Height:                                       Volvo 16v Swap:

Piston Set (4) with pistons, pins, locks, and rings:
Price: $540-$630

Chamber Design:
Finish Bore Size:
Contact Email:

Esslinger Chamber Dish:

Custom Piston Set (Special order only, do not purchase until we have been emailed with all pertinent details and have confirmed availability.)

Custom Price:
Contact Email:

2.3 to SBF Bellhousing Adapter Plate
This billet aluminum plate converts any Ford 2.3L OHC engine to the small-block Ford bellhousing bolt pattern. This allows 2.3 owners to run the larger 5.0 Mustang clutch components, T-45, T-56, and other manual transmissions, as well as any of the automatic transmissions available for small block Fords. Adapter use in manual transmission applications will require the use of a zero balance small-block Ford flywheel with a 2.3 crank bolt pattern (also available). Includes all hardware shown, as well as an instruction sheet.
(No Longer Available)

Aluminum Flywheel for 5.0/SBF Clutch on 2.3 Engine
This CNC machined billet aluminum zero balance 157-tooth small-block Ford flywheel with a 2.3 crank bolt pattern is custom made by S.P.E.C Clutches and Flywheels. It is SFI certified and made from 6061 T6 aluminum for ultimate strength and minimal weight. The 1/4" thick friction plate is machined from 1050 high carbon alloy, for incredible durability with any friction disc material, even iron. The plates are secured to the body by aerospace fasteners which were chosen for their exceptional strength and corrosion resistance. When used in conjunction with the adapter plate above, it allows you to run a larger small block ford 10.5" clutch on a 2.3 engine. Stock 2.3 steel flywheel weighs 21 pounds. This aluminum flywheel is only 11.5 pounds. That's a 45% reduction in rotating mass!
Replacement friction plate & fasteners for available in drop down menu for V8 flywheel below as well.
Price: $345

2.3 Turbo Aluminum Flywheel (SVO, Turbo GT, Turbo Coupe, XR4Ti)
This CNC machined billet aluminum zero balance 2.3L Turbo Ford flywheel made by S.P.E.C Clutches and Flywheels. It is SFI certified and made from 6061 T6 aluminum for ultimate strength and minimal weight. The 1/4" thick friction plate is machined from 1050 high carbon alloy, for incredible durability with any friction disc material, even iron. The plates are secured to the body by aerospace fasteners which were chosen for their exceptional strength and corrosion resistance. This is a direct replacement for the stock steel 2.3 Turbo flywheel. Stock 2.3 steel flywheel weighs 21 pounds. This aluminum flywheel is only 10.5 pounds. That's a 50% reduction in rotating mass! Replacement friction plate & fasteners available in drop down menu below.
Replacement friction plate & fasteners for aluminum version available in drop down menu as well.

Price: $395 - Instant Discount*
*Actual Price Too Cheap to List, Instant Discount Applied in Cart

Item:

5.0 Mustang Steel & Aluminum Flywheels (Fox Body era)
This CNC machined billet 5.0L Mustang flywheel made by S.P.E.C Clutches and Flywheels. It is SFI certified and made from 6061 T6 aluminum or 1050 high carbon alloy steel for ultimate strength and minimal weight. The 1/4" thick friction plate is machined from 1050 high carbon alloy, for incredible durability with any friction disc material, even iron. The plates are secured to the body by aerospace fasteners which were chosen for their exceptional strength and corrosion resistance. This is a direct replacement for the stock steel fox body 5.0L flywheel. Available in zero balance, 28oz imbalance, and 50oz imbalance in both aluminum and steel.
Replacement friction plate & fasteners for aluminum version available in drop down menu as well.

Price: $250-$370 - Instant Discount*
*Actual Price Too Cheap to List, Instant Discount Applied in Cart

Item:
Balance:



SPEC Performance Clutch Kits
SPEC clutches are manufactured on-site using the most advanced methods under the strictest tolerances. They wouldn't have it any other way. Their commitment to making the very finest parts is at the core of what they stand for as a company. Don't accept anything less. All kits are SFI certified and come with the Pressure Plate, Disk, Throwout Bearing, and Alignment Tool.

If you are looking for a SPEC product that is not listed below, let us know. We are a dealer and can provide you with anything SPEC manufactures and we can price them VERY competitively.

Clutch prices are below the manufacturers allowable minimum advertised pricing so you have to add the item to the cart to see actual (cheaper than listed) price.

Stage 1
Types of Driving:
Street, Drag, Drift, Road Race, Rally, Pulling, Autocross

Features an integrally molded carbon kevlar-based, high performance organic lining that offers smooth engagement and excellent life. This lining has an integrally bonded steel backing for strength under high clamp loads and temperatures. The hub is double sprung with spring cover relieves for flexibility and heat treated components for strength and durability. Best for street and many track/off-road applications.

  • High clamp pressure plate
  • Steel-backed and multi-compound woven organic material
  • High torque sprung hub and disc assembly
  • Bearing and tool kit

84-86 SVO | 83-88 T-bird TC

85-89 Merkur XR4Ti 86-95 Mustang 5.0
Torque Capacity: 255 Torque Capacity: 235 Torque Capacity: 495
Part Number: SF721 Part Number:SM721 Part Number: SF481
Price: $299 - Discount*
*Real Price Too Cheap to List, Instant Discount Applied in Cart
Price: $270 - Discount*
*Real Price Too Cheap to List, Instant Discount Applied in Cart
Price: $235 - Discount*
*Real Price Too Cheap to List, Instant Discount Applied in Cart

Stage 2
Types of Driving:
Street, Drag, Pulling, Autocross

Features segmented or full faced pure Kevlar disc with steel backing. This lining features excellent drivability like the stage 1, but offers slightly longer life and higher torque capacity. The hub is double sprung with spring cover relieves for flexibility and heat treated components for strength and durability. Best for street, drag, pulling and autocross.

  • High clamp pressure plate
  • Pure Kevlar friction material
  • High torque sprung hub and disc assembly
  • Bearing and tool kit
84-86 SVO | 83-88 T-bird TC 85-89 Merkur XR4Ti 86-95 Mustang 5.0
Torque Capacity: 315 Torque Capacity: 300 Torque Capacity: 567
Part Number: SF722 Part Number: SM722 Part Number: SF482
Price: $369 - Discount*
*Real Price Too Cheap to List, Instant Discount Applied in Cart
Price: $315 - Discount*
*Real Price Too Cheap to List, Instant Discount Applied in Cart
Price: $325 - Discount*
*Real Price Too Cheap to List, Instant Discount Applied in Cart

Stage 2+
Types of Driving:
Street, Drag, Autocross, Road Race, Pulling, Rally, Drift

Features a multi-friction disc in a full faced configuration with carbon semi-metallic on one side and Kevlar on the other. Bridging the gap between stage 2 and stage 3, the 2+ offers drivability and engagement quality characteristic of the stage 2, but with a 15-20% higher torque capacity. The hub is double sprung with spring cover relieves for flexibility and heat treated components for strength and durability. Great for street, drag, autocross, road racing, pulling, rally and drift.

  • High clamp pressure plate
  • Hybrid Kevlar and Carbon-Graphite Friction material
  • High torque sprung hub and disc assembly
  • Bearing and tool kit
84-86 SVO | 83-88 T-bird TC 85-89 Merkur XR4Ti 86-95 Mustang 5.0
Torque Capacity: 380 Torque Capacity: 350 Torque Capacity: 635
Part Number:SF723H Part Number: SM722H Part Number: SF483H
Price: $399 - Discount*
*Real Price Too Cheap to List, Instant Discount Applied in Cart
Price: $360 - Discount*
*Real Price Too Cheap to List, Instant Discount Applied in Cart
Price: $360 - Discount*
*Real Price Too Cheap to List, Instant Discount Applied in Cart

Stage 3
Types of Driving:
Street, Drag, Road Race, Pulling, Rally, Drift

Features a carbon semi-metallic 6 puck sprung hub disc that has been the leading puck clutch in drivability, life and torque capacity. This unit is designed for street and race cars that require an aggressive but streetable engagement and high torque capacity. The hub is double sprung with spring cover relieves for flexibility and heat treated components for strength and durability. Also available in 3 puck configuration. Great for street, drag, road racing, pulling, rallye and drift.

  • High clamp pressure plate
  • Carbon-Graphite Friction Material
  • High torque sprung hub and disc assembly
  • Bearing and tool kit
84-86 SVO | 83-88 T-bird TC 85-89 Merkur XR4Ti 86-95 Mustang 5.0
Torque Capacity: 425 Torque Capacity: 395 Torque Capacity: 680
Part Number: SF723 Part Number: SM723 Part Number: SF483
Price: $345 - Discount*
*Real Price Too Cheap to List, Instant Discount Applied in Cart
Price: $350 - Discount*
*Real Price Too Cheap to List, Instant Discount Applied in Cart
Price: $345 - Discount*
*Real Price Too Cheap to List, Instant Discount Applied in Cart

Stage 3+
Types of Driving:

Street, Drag, Autocross, Road Race, Pulling, Rally, Drift

The flagship stage for a high powered street or race car that requires a manageable and friendly engagement, the stage 3+ features a carbon semi-metallic full faced material that offers unparalleled life, friction co-efficient and drivability characteristics in one single package. The hub is double sprung with spring cover relieves for flexibility and heat treated components for strength and durability. Great for street, drag, drift, autocross, road racing, pulling, rallye and drift.

  • High clamp pressure plate
  • Carbon semi-metallic friction material
  • High torque sprung hub and disc assembly
  • Bearing and tool kit
84-86 SVO | 83-88 T-bird TC 85-89 Merkur XR4Ti 86-95 Mustang 5.0
Torque Capacity: 525 Torque Capacity: 465 Torque Capacity: 790
Part Number: SF723F Part Number: SM723F Part Number: SF483F
Price: $505 - Discount*
*Real Price Too Cheap to List, Instant Discount Applied in Cart
Price: $450 - Discount*
*Real Price Too Cheap to List, Instant Discount Applied in Cart
Price: $450 - Discount*
*Real Price Too Cheap to List, Instant Discount Applied in Cart

Stage 4
Types of Driving:

Drag, Road Race, Pulling, Rally, Drift

This unit is a solid hub version of the stage 3. The hub is solid 8-rivet and the assembly is heat treated for strength and durability. It is available in a 3, 4 or 6 puck configuration. Use the 3 puck for the lightest option or the 6 puck for the smoothest engagement. The 4 puck is a good compromise for both. Street drivable in 6 puck configuration, but not street friendly due to the rigid hub. Best for drag racing, road racing, pulling, rallye and drift.

  • High clamp pressure plate
  • Carbon-Graphite Friction Material
  • High torque solid hub and disc assembly
  • Bearing and tool kit
84-86 SVO | 83-88 T-bird TC 85-89 Merkur XR4Ti 86-95 Mustang 5.0
Torque Capacity: 425 Torque Capacity: 395 Torque Capacity: 680
Part Number: SF724 Part Number: SM724 Part Number: SF484
Price: $310 - Discount*
*Real Price Too Cheap to List, Instant Discount Applied in Cart
Price: $310 - Discount*
*Real Price Too Cheap to List, Instant Discount Applied in Cart
Price: $360 - Discount*
*Real Price Too Cheap to List, Instant Discount Applied in Cart

Stage 5
Types of Driving:
Extreme Street, Drag

Features a full-metallic disc with the highest possible friction co-efficient. Street drivable but not street-friendly. The hub is solid 12-rivet and the assembly is heat treated for strength and durability. Best for extreme street and drag racing.

  • High clamp pressure plate
  • Full-metallic friction material
  • High torque solid hub and disc assembly
  • Bearing and tool kit
84-86 SVO | 83-88 T-bird TC 85-89 Merkur XR4Ti 86-95 Mustang 5.0
Torque Capacity: 599 Torque Capacity: 550 Torque Capacity: 955
Part Number: SF725 Part Number: SM725 Part Number: SF485
Price: $480 - Discount*
*Real Price Too Cheap to List, Instant Discount Applied in Cart
Price: $460 - Discount*
*Real Price Too Cheap to List, Instant Discount Applied in Cart
Price: $450 - Discount*
*Real Price Too Cheap to List, Instant Discount Applied in Cart

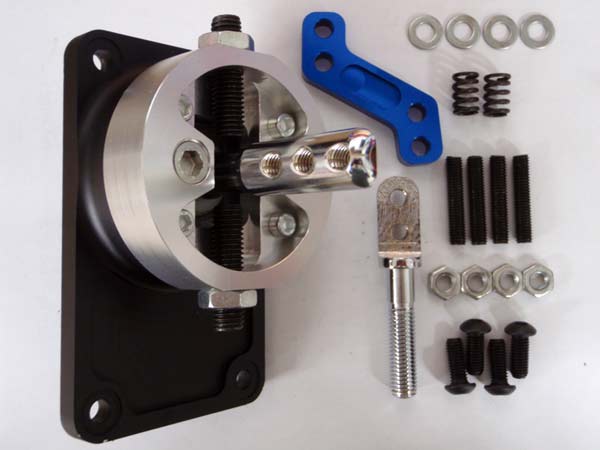

T5/T45 Transmission Billet Aluminum Short Shifter
This CNC machined billet aluminum shifter features a shorter throw than stock, adjustable stops (to prevent shift fork breakage), adjustable detent spring pressure for precise shifting, and an adjustable handle. Missed shifts will be history. Includes:

  • Shifter Base
  • Shifter Handle
  • Shift Stops
  • Mounting Hardware
  • Stiffer Replacement Springs to Customize Shift Feel

Price: $75 Shipped

Solution Graphics


If you have any questions about any of these parts feel free to contact us HERE
